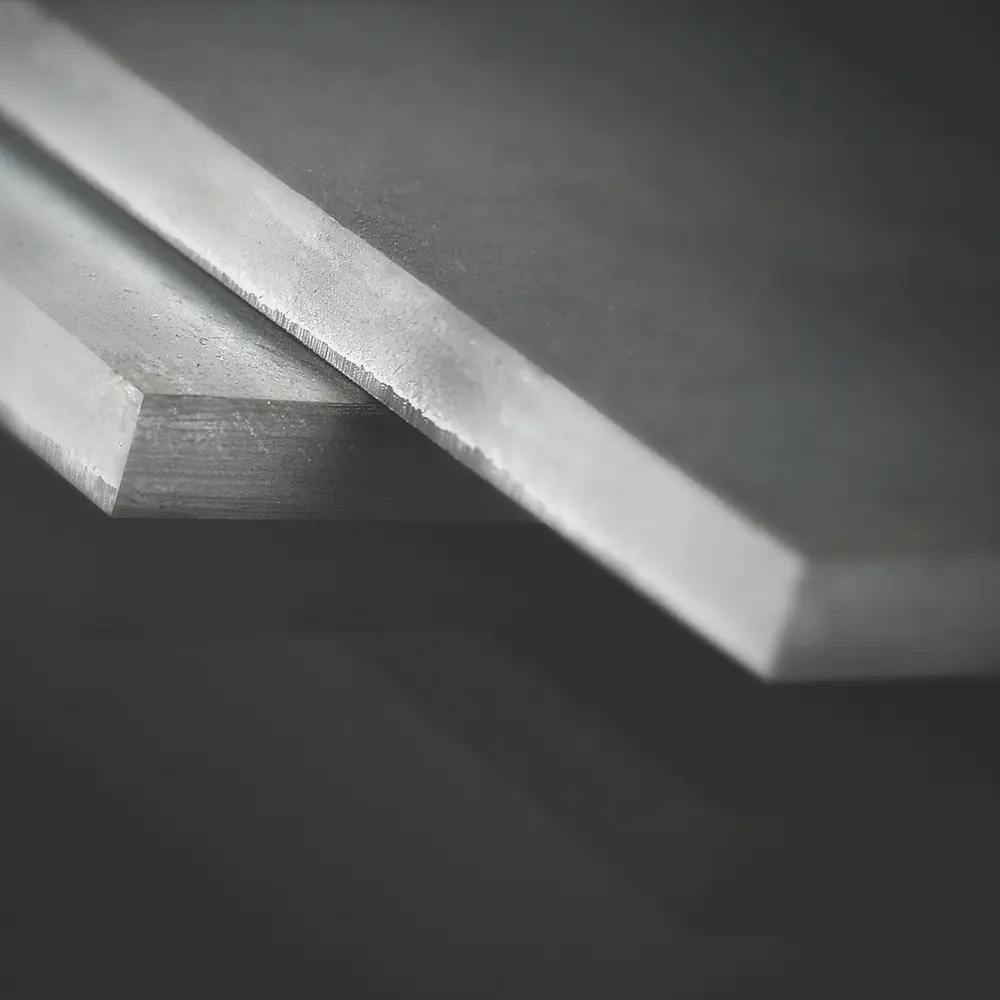

Placa en Hoja y Rollo

Ofrecemos diferentes tipos de aceros, estructurales, alta resistencia, para recipientes a presión, alto carbono, así como una amplia gama de espesores y medidas.

Category: Acero

Descripción
Valoraciones (0)

Descripción

Espesor			Peso		Peso teórico por placa (Kg.)
Espesor			Peso		Medidas
Pulg.	Milésimas	mm.	Kg./m2.	Kg./pie2.	3′ x 6′	3′ x 8′	3′ x 10′	4′ x 8′	4′ x 10′	5′ x 10′	5′ x 20′	6′ x 10′	6′ x 20′	8′ x 20′
3/16″	188	4.76	37.39	3.47	62.52	83.36	104.20	111.14	138.93	173.66	347.32	208.39	416.79	555.72
1/4″	250	6.35	49.85	4.63	83.36	111.14	138.93	148.19	185.24	231.55	463.10	277.86	555.72	740.96
5/16″	313	7.94	62.31	5.79	104.20	138.93	173.66	185.24	231.55	289.44	578.87	347.32	694.65	926.20
3/8″	375	9.53	74.77	6.95	125.04	166.72	208.39	222.29	277.86	347.32	694.65	416.79	833.58	1,111.44
7/16″	438	11.11	87.23	8.10	145.88	194.50	243.13	259.34	324.17	405.21	810.42	486.25	972.51	1,296.68
1/2″	500	12.70	99.70	9.26	166.72	222.29	277.86	296.38	370.48	463.10	926.20	555.72	1,111.44	1,481.92
5/8″	625	15.88	124.62	11.58	208.39	277.86	347.32	370.48	463.10	578.87	1157.75	694.65	1,389.30	1,852.40
3/4″	750	19.05	149.54	13.89	250.07	333.43	416.79	444.58	555.72	694.65	1389.30	833.58	1667.16	2,222.88
7/8″	875	22.23	174.47	16.21	291.75	389.00	486.25	518.67	648.34	810.42	1620.85	972.51	1945.02	2,593.35
1″	1000	25.40	199.39	18.52	333.43	444.58	555.72	592.77	740.96	926.20	1,852.40	1,111.44	2,222.88	2,963.83
1 1/4″	1250	31.75	249.24	23.15	416.79	555.72	694.65	740.96	926.20	1,157.75	2,315.49	1,389.30	2,778.59	3,704.79
1 1/2″	1500	38.10	299.09	27.79	500.15	666.86	833.58	889.15	1,111.44	1,389.30	2,778.59	1,667.16	3,334.31	4,445.75
1 3/4″	1750	44.45	348.93	32.42	583.50	778.01	972.51	1,037.34	1,296.68	1,620.85	3,241.69	1,945.02	3,890.03	5,186.71
2″	2000	50.80	398.78	37.05	666.86	889.15	1,111.44	1,185.53	1,481.92	1,852.40	3,704.79	2,222.88	4,445.75	5,927.67
2 1/2″	2500	63.50	498.48	46.31	833.58	1,111.44	1,389.30	1,481.92	1,852.40	2,315.49	4,630.99	2,778.59	5,557.19	7,409.58
3″	3000	76.20	598.17	55.57	1,000.29	1,333.73	1,667.16	1,778.30	2,222.88	2,778.59	5,557.19	3,334.31	6,668.63	8,891.50
3 1/2″	3500	88.90	697.87	64.83	1,167.01	1,556.01	1,945.02	2,074.68	2,593.35	3,241.69	6,483.39	3,890.03	7,780.06	10,373.42
4″	4000	101.60	797.56	74.10	1,333.73	1,778.30	2,222.88	2,371.07	2,963.83	3,704.79	7,409.58	4,445.75	8,891.50	11,855.33
4 1/2″	4500	114.30	897.26	83.36	1,500.44	2,000.59	2,500.73	2,667.45	3,334.31	4,167.89	8,335.78	5,001.47	10,002.94	13,337.25
5″	5000	127.00	996.95	92.62	1,667.16	2,222.88	2,778.59	2,963.83	3,704.79	4,630.99	9,261.98	5,557.19	11,114.38	14,819.17
6″	6000	152.40	1196.34	111.14	2,000.59	2,667.45	3,334.31	3,556.60	4,445.75	5,557.19	11,114.38	6,668.63	13,337.25	17,783.00
